Power Track Socket Manufacturer

Power Track Expansion Socket

UYEE-LZZS is the manufacturer of Power Track Socket in China. Our Power Track Socket has a variety of socket modules of different designs so that all countries around the world can get satisfactory products. Contact me now for the latest information!

Download All Products Catalog as a PDF

To save you time, we have also prepared a PDF version containing all the contents of this page, only leave your WeChat/WhatsApp and you will get the download link immediately.

Types and parameters of Track Power sockets

Track NameThe second generation surface mounted Track (left and right wiring)
Track ColorMeteorite black, deep space gray, matte white
Installation ModeSurface mounted
Process MaterialSandblasting aluminum Alloy+small anodizing
Rated Power8000W
Rated Current32A
Rated Voltage110v-250v~
Dimensionswidth 86mm,thickness 18mm,length 0.3/0.4/0.6/0.8/1.1/1.2/1.5/3m can be customized

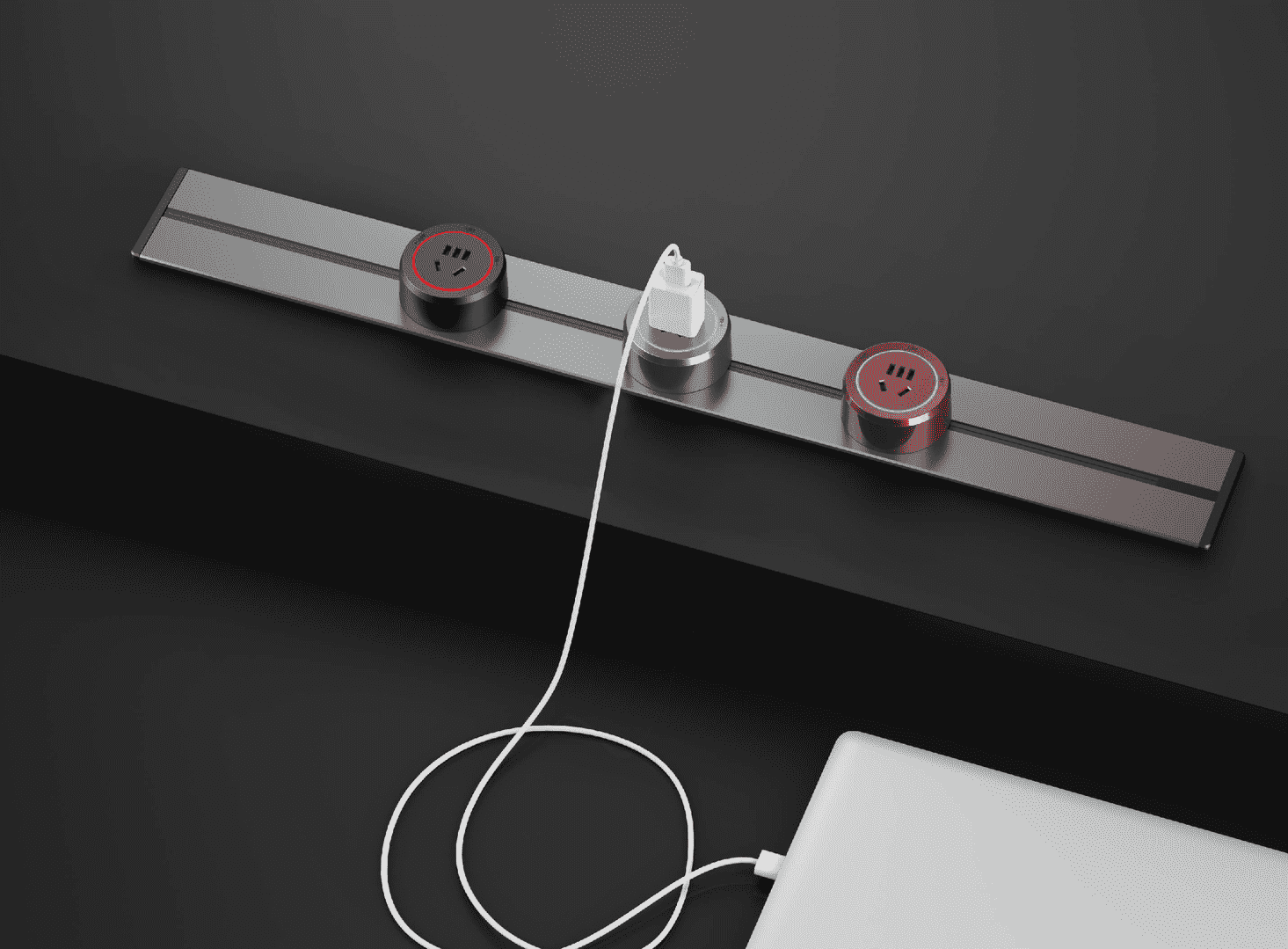

Second generation concealed track socket
The second generation of surface mounted track sockets
Track NameThe second generation concealed track (left and right wiring)
Track ColorMeteorite black, deep space gray, matte white
Installation Modeconcealed
Process MaterialSandblasting aluminum Alloy+small anodizing
Rated Power8000W
Rated Current32A
Rated Voltage110v-250v~
Dimensions

width 86mm,thickness 18mm,length 0.3/0.4/0.6/0.8/1.1/1.2/1.5/3m can be customized



Track NameThe frist generation surface mounted Track (left and right wiring)
Track ColorMeteorite black, deep space gray, champagne gold, space silver
Installation ModeSurface mounted
Process MaterialSandblasting aluminum Alloy+small anodizing
Rated Power6200W
Rated Current25A
Rated Voltage110v-250v~
Dimensions

width 86mm,thickness 18mm,length 0.3/0.4/0.6/0.8/1.1/1.2/1.5/3m can be customized

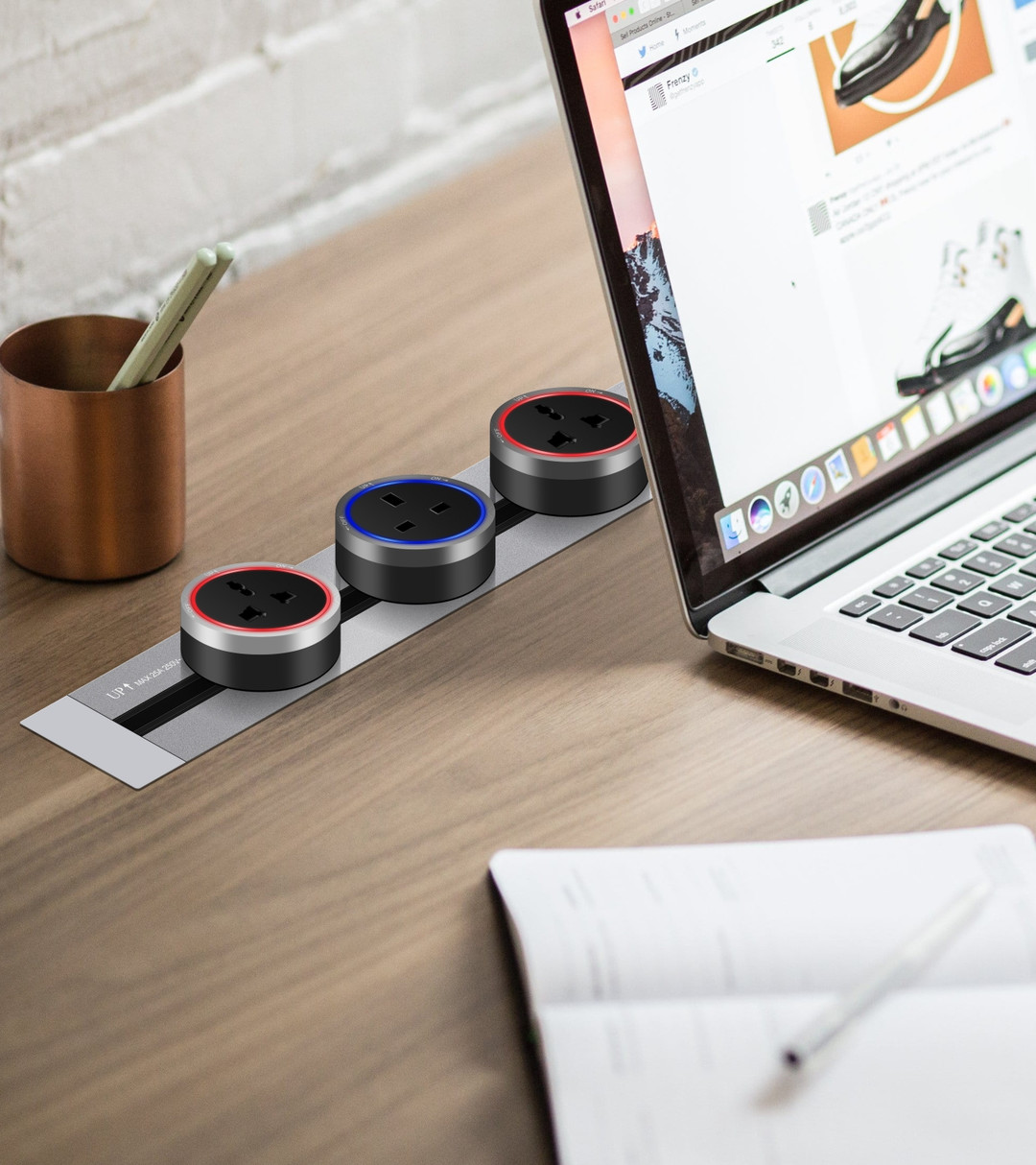

The first generation of concealed track sockets

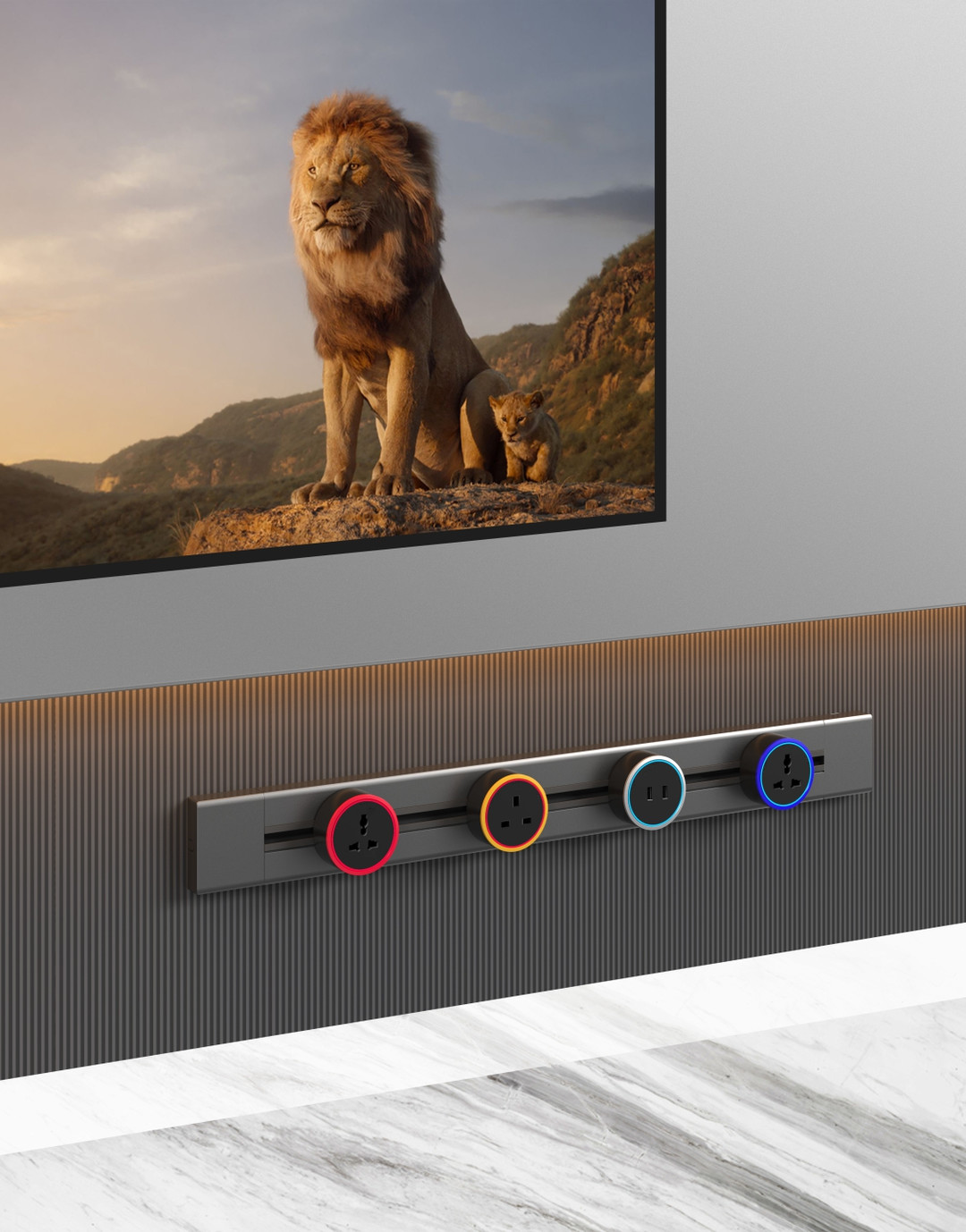

The first generation of surface mounted track socket
Track NameThe frist generation concealed track (left and right wiring)
Track ColorMeteorite black, deep space gray, champagne gold, space silver
Installation Modeconcealed
Process MaterialSandblasting aluminum Alloy+small anodizing
Rated Power6250W
Rated Current25A
Rated Voltage110v-250v~
Dimensionswidth 86mm,thickness 18mm,length 0.3/0.4/0.6/0.8/1.1/1.2/1.5/3m can be customized

Why are track sockets so high-powered and safe?

  • The track plug uses five copper rods of 3.5 mm, and its power is equivalent to 8 square wires.
    Can withstand up to 8000W of power
  • The track is made of aluminum alloy Small anodizing process
  • Aluminum alloy material is sturdy and durable the surface is easy to clean take care of oily stains
Track socket material introduction

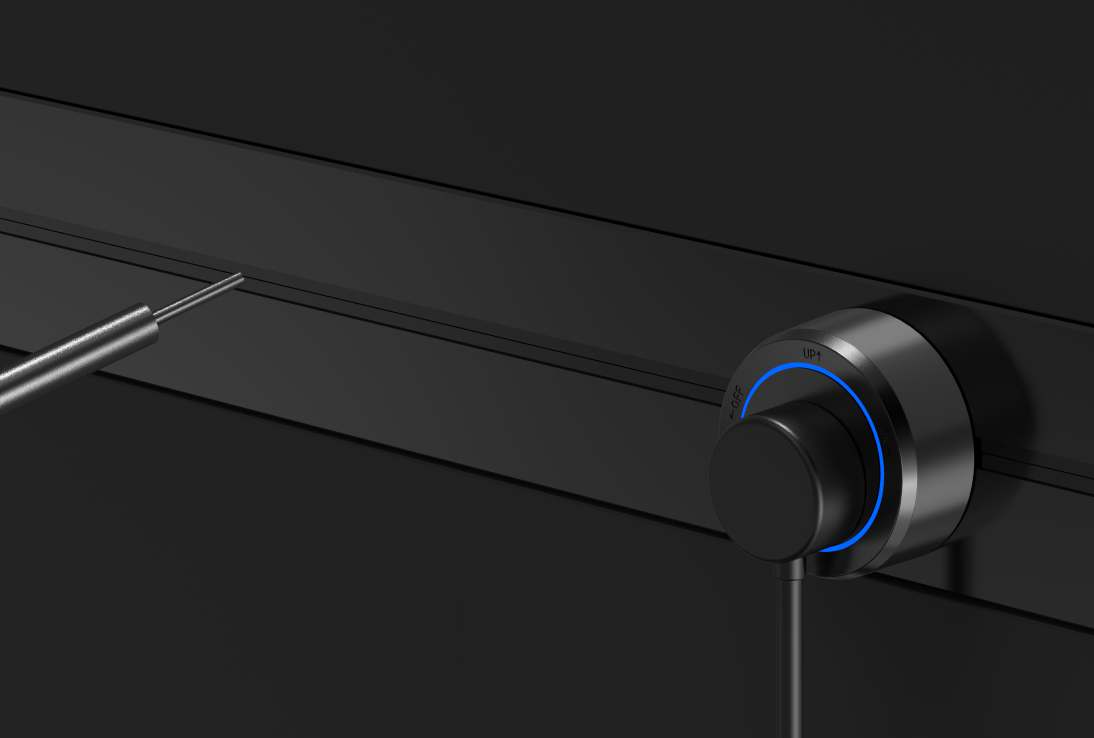

All conductors are wrapped with insulators, the zero live wire hidden domain, and the upper end of the track.

High-resilience sealing tape to block the entry of fingers and dust.

Long-term use does not deform, to prevent the possibility of electric shock.

How do track sockets work?

The use of the rail socket is straightforward; its socket can be moved and changed.

You turn the socket 45° to power down, and the socket also becomes movable left and right.

Rotate to 90° to remove the socket module and replace it with other modules you want.

Types of the socket adapter

There are many types of adapters for rail sockets. In addition to sockets that conform to various countries, such as British, American, European, etc., there are also square and round appearances.
Of course, to meet the home style of each family, we have also made a lot of designs. The materials include all aluminum, aluminum + tempered glass, and all-plastic.
There is an LED dot display or aperture display, with the blue and red light on the LED display.
In terms of color, we made a lot of different colors, red, yellow, blue, black, gray, etc.
With various combinations and collocations, there are many different designs for users to choose from

Dimensions of track sockets and how to install them

The second generation track socket size

The second generation track socket size

The frist generation track socket size

The frist generation track socket size

Installation steps for power Track sockets

Rail socket installation

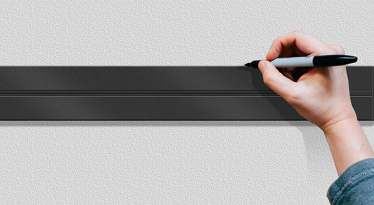

Step 1

ldentify the installation postion draw parallel according to the positionLine( the track is not divided into left,right,up and down)

step2

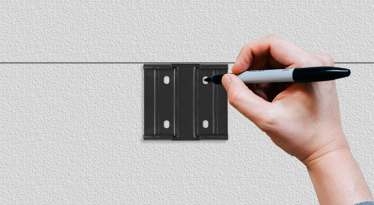

Step 2

Accoriding to the draw line,press the upper edge to align, and make the fixing screw mark.

step 3

Step 3

Punch out the expansion screw holes according to the markes

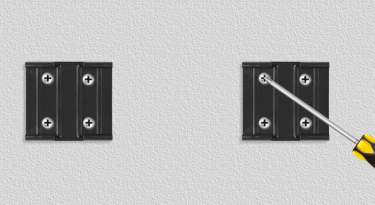

Step 4

Tighten the screws

Step 5

There is a screwdriver symbol at the power termianal,lift the cover according to the prompt position

Track socket wiring method

Method 1

Step 1

Connect the corresponding terminal

Step 2

Wire lead out of the cover plate outlet,cover the cover plate

Step 3

Connect the track and the reserved wire, align it with the buckld card,and the installation is complete

Method 2

Step 1

Connect to the corresponding terminal wire along the track well plugged

Step 2

Attach the terminal cover

Step 3

Connect the track and the reserved wire, align it with the buckle card, and the installation is complete

Method 3

Step 1

Tap the round hole on the side cover gently to introduce the wire,Connect to the corresponding terminal

Step 2

Attach the termincal cover

Step 3

Align the buckle card,the installation is complete

Step 5

Directly plug the lead out of the open wire into the socket to get electricity
