In the competitive global market for electrical accessories, professional B2B buyers—including importers, wholesalers, and project managers—frequently encounter a significant challenge: distinguishing between a “consumer-grade” socket and an “engineering-grade” power terminal. While the external aesthetics of a product may suggest quality, the true differentiator lies hidden within the internal conductive mechanisms. At UYEE-LZZS, our 2025 product roadmap focuses on the “Science of Contact,” a philosophy that centers on the use of Tin Phosphorus Bronze as the primary current-carrying component for all high-load sockets. This article serves as a deep technical dive into why Tin Phosphorus Bronze is the gold standard for conductivity and clamping force, and how it directly influences the safety, reliability, and profitability of large-scale engineering projects.
Technical Depth: The Metallurgy of Tin Phosphorus Bronze
To understand the superiority of UYEE-LZZS internal components, one must first look at the metallurgical composition of the materials used. Tin Phosphorus Bronze (often denoted as CuSnP) is a high-performance copper-based alloy that incorporates tin as the primary alloying element and phosphorus as a crucial deoxidizer.
The Role of Tin (Sn)
Tin is added to the copper matrix primarily to enhance the material’s mechanical strength and corrosion resistance. Unlike standard brass, which uses zinc, tin-bronze forms a more stable crystalline structure that resists the typical “de-zincification” process seen in cheaper alloys. This is particularly vital for projects in humid or coastal environments, where atmospheric moisture can quickly degrade inferior materials.
The Power of Phosphorus (P)
While present in small quantities (typically less than 0.35%), phosphorus acts as a powerful deoxidizer during the casting process, removing residual oxygen and significantly improving the material’s grain structure. This refinement results in a metal that possesses extraordinary hardness and elasticity—two properties that are traditionally at odds. For UYEE-LZZS, this means our socket terminals can be stamped and bent into precise geometries without developing micro-fractures, maintaining their “spring” for years of continuous use.
Conductivity and Thermal Stability
While pure copper has higher electrical conductivity, it lacks the mechanical strength required to serve as a socket terminal. Tin Phosphorus Bronze represents the perfect engineering compromise: it offers high electrical conductivity (typically around 13−15% IACS) combined with a high thermal conductivity that allows it to dissipate heat rapidly. In high-current applications, such as charging modern electric vehicles or running high-power HVAC units from a 16A socket, this thermal management prevents the plastic housing from reaching its glass transition temperature, thereby avoiding deformation and fire risks.
Clamping Force and Elasticity: The Engineering of Contact
For an electrical socket, the most critical mechanical metric is clamping force. This is the pressure exerted by the internal bronze clips on the pins of a plug. If the clamping force is too low, the contact resistance increases, leading to localized heating and potential arcing. If it is too high, the user will find it difficult to insert or remove the plug, potentially damaging the socket’s internal structure.
Fatigue Resistance and the “Cycle Gap”
All metal components undergo a phenomenon known as “stress relaxation” or mechanical fatigue. Every time a plug is inserted, the bronze clips are forced apart, and every time it is removed, they must spring back to their original position. Standard brass terminals often lose their elasticity after a few thousand cycles, leading to a “loose socket” that is the primary cause of electrical fires in residential buildings.
Data-Driven Reliability

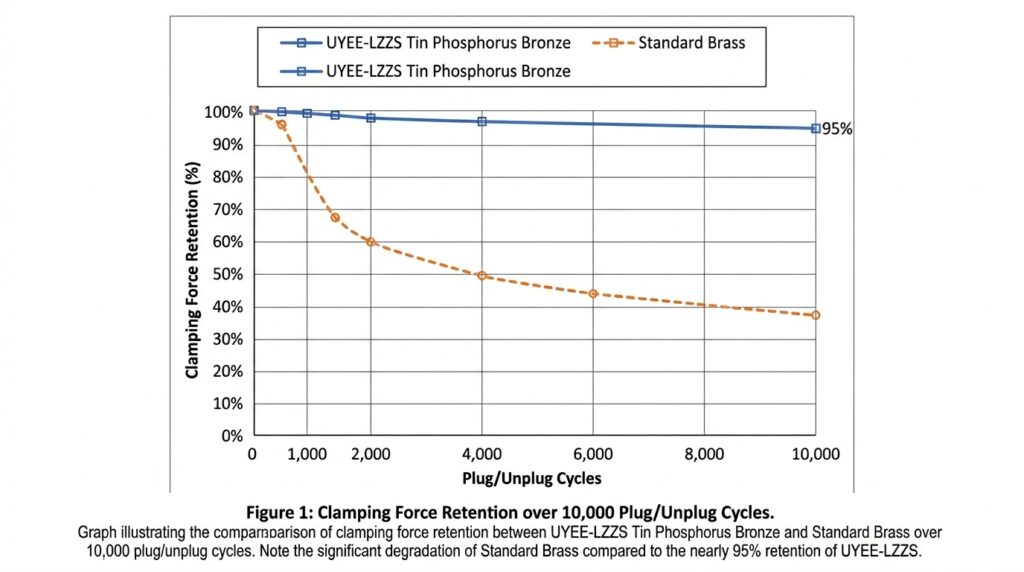

As illustrated in Figure 1: Clamping Force Retention over 10,000 Plug/Unplug Cycles (at the top of this report), UYEE-LZZS Tin Phosphorus Bronze components maintain nearly 95% of their original clamping force after 10,000 cycles. In contrast, standard brass components see a rapid degradation, dropping to less than 40% of their original force. This “elastic memory” is why our sockets are rated for a service life exceeding 10 years in high-traffic environments like hotel lobbies and commercial offices.
UYEE-LZZS Precision Stamping
We utilize a 0.6mm thickness standard for our internal bronze components, significantly thicker than the industry average. This thickness, combined with our precision stamping technology at the Wenzhou Lianzhong Injection Technology facility, ensures that the contact area between the bronze and the plug pin is maximized. A larger contact area further reduces contact resistance, ensuring a cooler, safer operation under full load.
Thermal Management and Conductivity
Heat is the ultimate enemy of electrical safety. When current flows through a conductor with resistance, it generates heat (P=I2×R). In the B2B sector, where 16A loads are the standard, even a small increase in contact resistance can lead to a significant temperature rise.
Reducing Contact Resistance
The integrated design of our current-carrying components minimizes the number of joints and welds. Every joint is a potential source of resistance. By using a single, continuous piece of high-grade Tin Phosphorus Bronze, UYEE-LZZS ensures that current flows seamlessly from the terminal screw to the plug interface.
The Temperature Rise Advantage

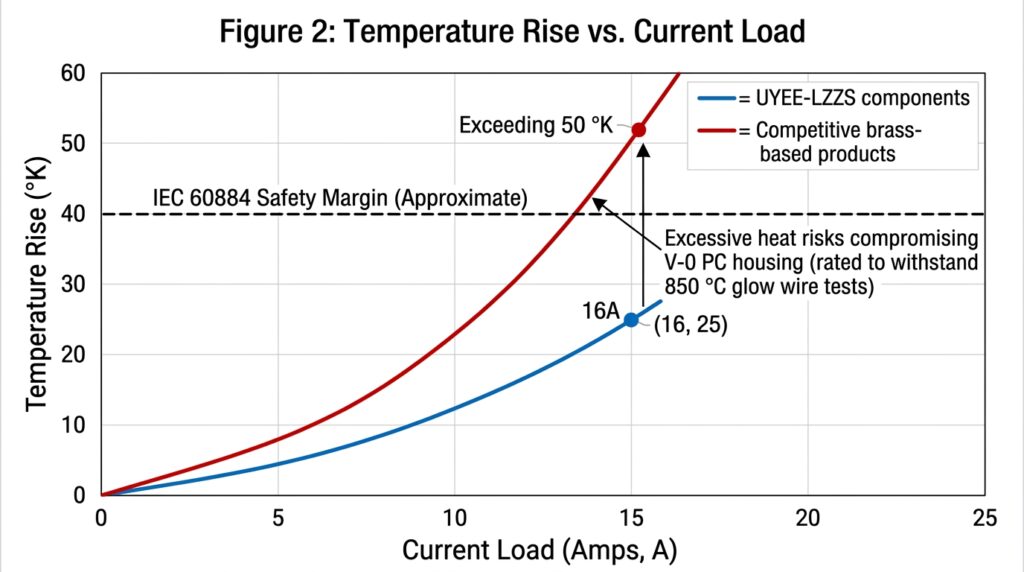

Referencing Figure 2: Temperature Rise vs. Current Load, the difference in performance is stark. At the 16A standard load, UYEE-LZZS components exhibit a temperature rise of approximately 25∘K, well within the safety margins required by IEC 60884 standards. Competitive brass-based products, however, can see temperature rises exceeding 50∘K under the same load. This excessive heat can compromise the V-0 grade flame-retardant PC housing, even though it is rated to withstand 850∘C glow wire tests. By keeping the source of heat cool, we provide an extra layer of structural protection for the entire socket assembly.
Comparative Analysis: Why Brass is Insufficient for B2B Standards
Many wholesalers are tempted by the lower price points of brass-based sockets. However, an analysis of the “Engineering Economy” reveals that the true cost of brass is significantly higher over time.
- Safety Risks: Loose brass terminals are prone to arcing, which is the leading cause of “carbon buildup” on plug pins and the eventual failure of the socket.
- Maintenance Costs: In project environments, a single failed socket can cost hundreds of dollars in labor and downtime to replace. For a hotel with 500 rooms, a 1% failure rate due to inferior materials represents a massive operational headache.
- Brand Reputation: For importers building their own brand, using Tin Phosphorus Bronze is a “trust investment.” It ensures that the end-user never experiences a loose or “burnt” socket, directly reflecting on the reliability of the brand name.
At UYEE-LZZS, we believe that B2B success is built on long-term reliability rather than short-term price advantages. This is why our K1-PC, H1-KIRO, and V-Series all exclusively feature premium bronze internals.
Project Impact and Commercial Value
For project contractors and lighting chain stores, the choice of internal material has a direct impact on the bottom line of a construction project.
- Compliant Engineering: Our products meet and exceed CE, CB, SNI, and RoHS certifications. This compliance is not just about a certificate; it is about the physical reality of a socket that can handle 16A loads without risk of fire or failure.
- Inventory Efficiency: Our modular design concept allows wholesalers to stock core bronze modules and pair them with various decorative frames (1-gang to 5-gang). This modularity reduces the amount of “dead stock” tied up in slow-moving fixed-unit SKUs.
- Installation Efficiency: The stainless steel galvanized metal chassis combined with our robust internal terminals allows for rapid, secure wiring. The large terminal holes are designed to accommodate multiple 2.5mm2 wires, significantly reducing the time required for loop-in and loop-out wiring on site.
Parameters and Compliance
To facilitate professional procurement, we maintain rigorous technical transparency. Every batch of Tin Phosphorus Bronze is tested for its copper content and mechanical properties before entering our production line.
UYEE-LZZS OEM/ODM Customization
As a professional manufacturer with 23 years of experience in injection and stamping technology, UYEE-LZZS offers comprehensive brand-building services. We don’t just supply products; we supply brand equity.
- Laser Logo Marking: We provide high-precision laser marking for your brand logo on the PC panels, which are resistant to impact and high temperatures.
- Custom Finishes: From the ultra-slim K1-PC series inspired by the Petronas Twin Towers to the classic H-Series, we offer custom colors including Matte Gray, Gold, and Luxury Black.
- Strategic Sourcing: Our location in the Wenzhou Economic & Technological Development Zone gives us access to premium raw material suppliers, ensuring that we never compromise on the quality of our Tin Phosphorus Bronze, even during global supply fluctuations.
Conclusion
In the world of B2B electrical hardware, the material is the message. By choosing UYEE-LZZS sockets, you are choosing a product engineered for the realities of modern high-load electrical environments. Our commitment to Tin Phosphorus Bronze internals ensures that every socket you install provides superior clamping force, efficient thermal management, and a service life that protects your reputation as a professional provider.
